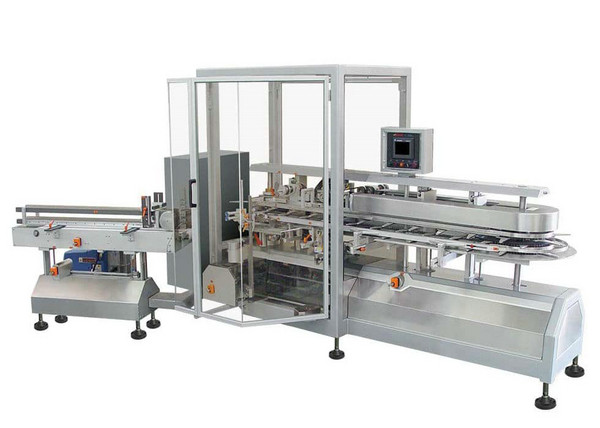

PLC Controlled Vertical Type Automatic Cartoning Machine for Small Box Contained Products

PLC Controlled Vertical Type Automatic Cartoning Machine for Small Box Contained Products

    • PLC Controlled Vertical Type Automatic Cartoning Machine for Small Box Contained Products
    • PLC Controlled Vertical Type Automatic Cartoning Machine for Small Box Contained Products
    • PLC Controlled Vertical Type Automatic Cartoning Machine for Small Box Contained Products
  • PLC Controlled Vertical Type Automatic Cartoning Machine for Small Box Contained Products

    Product Details:

    Place of Origin: People's Republic of China
    Brand Name: Hongsen Intelligent
    Model Number: HS-60L

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PC
    Price: Negotiable
    Packaging Details: Wrapping film plus wooden case
    Delivery Time: 30 days
    Payment Terms: L/C, T/T
    Supply Ability: 40 sets per month
    Contact Now
    Detailed Product Description
    Material: Carbon Steel Or Stainless Steel Speed: 20-60 Cartons/min.
    Function: Cartoning, Filling And Sealing Automation Degree: Full Automatic Or As Customized
    Optional Device: Hot Melt Glue Applicator, Labeller, Coding Machine Carton Size: As Per Customer Requirement

    PLC controlled Vertical Type Automatic Cartoning Machine for Small Box Contained Products





    Work Principle and Features of the Machine

    1. For bulk materials like screws, hoodless, chocolate balls, it can achieve quantitative cartoning and automatic counting;

    2. Servo/stepper motor, touch screen and PLC programmable control system adopted; HMI simple and convenient to operate; high automation degree and humanization;

    3. Sensor automatic tracking and detecting system adopted to avoid the operation of empty cartons, so as to massively save packing material;

    4. Wide packing range and easy adjustment to realize the swift switch between different sizes of cartons;

    5. There is no need to change any mould while changing the carton size; what you need to do is just adjust the values;

    6. Able to work together with robot arm/manipulator to realize automatic encasing or just manual encasing;

    7. Tilt-up protection hood available as per customer’s requirement;

    8. It can be linked to bagging machines, bottling machines, filling machines, labeling machines, coding machines, on-line weigher and many other machines to fulfill the production requirement of the complete line;

    9. Various types of automatic feeding and encasing system can be designed as per the actual requirement of the product;

    10. Hot-melt glue applicator optional for the sealing of cartons and mechanical brush gluing for sealing.



    Technical Parameters



    Model number HS-60L
    Power supply AC 380V 50Hz
    Main motor power 3KW
    Cartoning speed 20-60 cartons/min
    Air consumption 120-200NL/h
    Pressure 0.5-0.8 MPa
    Requirement on cartons 300-400 gram/m2(according to carton size)
    Cartoning size

    Maximum 250L*250W*110H mm

    Minimum 105L*70W*25H mm

    Overall dimension Mainframe 4200L*1400W*1650H mm
    Machine weight Approx. 1450 kg

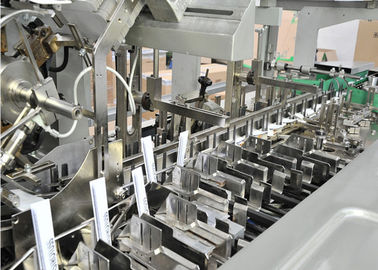

    PLC Controlled Vertical Type Automatic Cartoning Machine for Small Box Contained Products

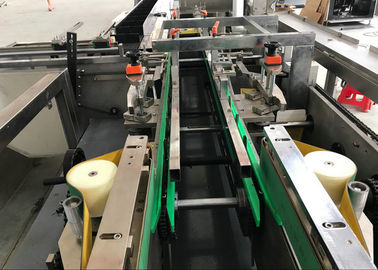

    PLC Controlled Vertical Type Automatic Cartoning Machine for Small Box Contained Products
