PLC Control Automatic Bag Packing Machine , Filling And Sealing Machine Open Top Bag

PLC Control Automatic Bag Packing Machine , Filling And Sealing Machine Open Top Bag

PLC Control Automatic Bag Packing Machine , Filling And Sealing Machine Open Top Bag

Product Details:

Place of Origin: People's Republic of China
Brand Name: Hongsen Intelligent
Model Number: HS-QZD500, HS-QZD1000

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiable
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Bag Volume: 10-50 Kg Type: Automatic Bag Filling And Sealing Machine
Control: PLC Operation: Touch Screen
Material: Rice Automation Grade: Automatic

Rice Automatic Filling , Bagging and Sealing Machine Open-Top Bag Auto Sewing



HONGSEN INTELLIGENT first came into automation industry since 2004. With more than ten years experience, now we are quite experienced in packing automation field. This packing machine is quite suitable for the filling of rice into open-mouth bags.



Features of our rice automatic filling mahcine:



A. High precision sensors and intelligent instruments are used for weighing mechanism to realize high precision and high speed;

B. Imported touch panels are used for HMI, which makes the operation simple with just a touch with your finger;

C. Imported pneumatic components are massively adopted due to their simple structure, high reliability, and easy maintenance;

D. Fault display and on-line help system available, which makes it easy to use;

E. No need of human involvement in the packing process, which will save mass manpower and reduce harm to staff in adverse environment.



Structure:

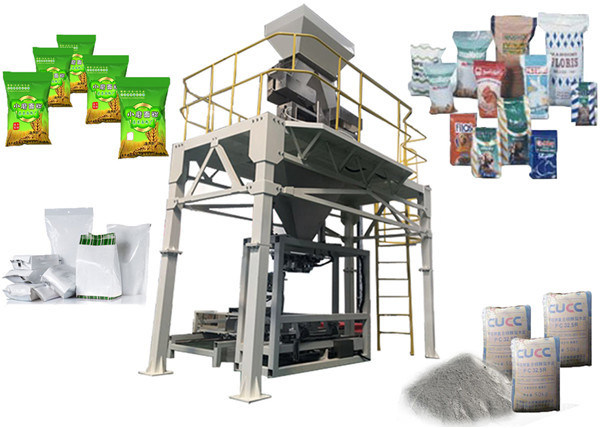

This machine is composed of movable bag magazine, bag applicator, weighing & metering mechanism, main frame, conveyor, edgefold & sealing station. For ultrafine powder material, dedusting device shall be equipped additionally.



Main Technical Data:



1. Measuring accuracy: ±0.2%
2. Weighing range: 10kg - 50kg
3. Packing speed: 300-1200 bags/h (for powder: 300-800 bags/h; for granule: 400-1200 bags/h)
Note: The packing speed depends on properties of materials. If a higher speed is requested, we are able to customize the machine.
4. Temperature range: -15ºC~+45ºC
5. Power supply: 380V, 50Hz
6. Air supply: 0.6-0.8 Mpa



PLC Control Automatic Bag Packing Machine , Filling And Sealing Machine Open Top Bag
