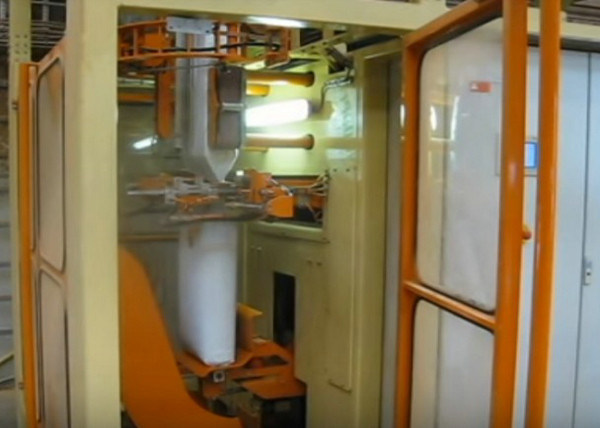

Fully Automatic FFS Packaging Machine / Bagging Machine With Heat Sealing

Fully Automatic FFS Packaging Machine / Bagging Machine With Heat Sealing

Fully Automatic FFS Packaging Machine / Bagging Machine With Heat Sealing

Product Details:

Place of Origin: People's Republic of China
Brand Name: Hongsen Intelligent
Model Number: HS-FFS500, HS-FFS1000

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiable
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Structure: Compact And Footprint Saving Name: Form Fill Seal Machine
Sealing: Thermal Technique Packaging Accuracy: ± 0.2%
Package Size: Changeable Package Weight: 10-25 Kg / 25-50 Kg
Film Supply: Continuous

Automated FFS Heavy Film Filling and Bagging Machine with Heat Sealing





Our FFS series of bag filling machines are fully automatic throughout the whole process. The main advantage of our full-automatic FFS series is its compatibility with different bag specifications, that means, it is able to change packaging size by adjusting bag length and width.Highly integrated package machine with tray forming, product filling area, sealing, gas flushing and die cutting. Reduce the risk of contacting insanitary source.Utien design multi-head liquid filling system can fill several packages at a time with certain quantity of liquid. This system is easy to maintain and durable for use.



Features of Hongsen FFS heavy film Form-Fill-Seal machine:



1. Compact structure, high integration, footprint saving;

2. Continuous supply of large rolls of film to improve the speed of packaging and reduce the frequency of changing bag types and replenishing bags;

3. Length of bag changeable according to different materials to reduce packaging cost;

4. Thermal sealing technique adopted to improve sealing quality and product appearance;

5. Work environment quiet, low noise, saving energy.



Technical Data:



Model Packing Speed (packs/h) Packaging Accuracy Packaging Specification

Working

Temperature

Voltage Air Pressure

Granules



Powders and premixes
HS-FFS500 400-600 300-500 ±0.2%

10-25KG

25-50KG

-15℃~45℃



380V 50HZ 0.6~0.8Mpa
HS-FFS1000 800-1200 600-800 ±0.2%

10-25KG

25-50KG

-15℃~45℃



380V 50HZ 0.6~0.8Mpa



Application scope:



All kinds of powdery and granular materials.
