Pneumatic D Valve Bag Filling Machine , Cement Bagging Machine 5-8 Bags/Min

Pneumatic D Valve Bag Filling Machine , Cement Bagging Machine 5-8 Bags/Min

    • Pneumatic D Valve Bag Filling Machine , Cement Bagging Machine 5-8 Bags/Min
    • Pneumatic D Valve Bag Filling Machine , Cement Bagging Machine 5-8 Bags/Min
  • Pneumatic D Valve Bag Filling Machine , Cement Bagging Machine 5-8 Bags/Min

    Product Details:

    Place of Origin: People's Republic of China
    Brand Name: Hongsen Intelligent
    Model Number: HS-FK

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PC
    Price: Negotiable
    Payment Terms: L/C, T/T
    Contact Now
    Detailed Product Description
    Name: Automatic Bag Filling Machine Drive: Pneumatic
    Package: Valve Bag Type: PVPE
    Operation: Touch Screen Bag Fetching: Manipulator
    Speed: 5-8 Bags/min
    High Light:

    valve bag filling machine

    ,

    automatic filling and packing machine

    Pneumatic Valve Bag Packing Machine for Cement Filling and Packaging





    The PVPE (Pneumatic Valve Packing Equipment) is an air flow bagger designed to fill dry solids, like granulated pellets, cement, adhesives, renders, powders, small aggregates and flaked products into valve bags. The PVPE works on the basis of air fluidisation of the product and differential pressure resulting in product flow into valve bags. This equipment can also be customized as per different customers’ special requirements. The PVPE Packer weighs the bag and contents as it is being filled. The packing speed can reach 5-8 bags per minute (20 kg) while maintaining accuracy. The speed relates to material ratio, fluidity, granularity, humidity, etc.

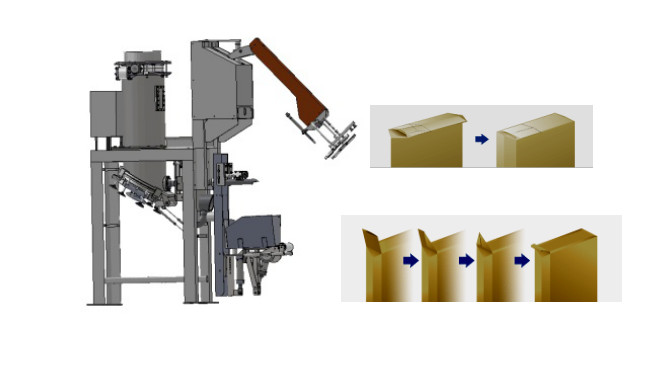

    Automatic Bag-Fetching Manipulator:



    The valve bag is sucked up by the suction cup, and the manipulator stretch open the bag mouth to insert the bag into the material discharge hole. The vacuum of the standard suction cup is generated by the suction system. This system can give timely feedback of product status to ensure that each bag is accurately placed to the packaging machine discharge hole.



    Materials to Fill:



    Including but not limited to dry powders, premixes or materials of diameter less than 7 mm

    Typical materials: PVC powder, renders, cement, gypsum powder, dry mortar, fine sand, lime powder, tile adhesives, joint mixture, charcoal powder, graphite, grain, flour, chemical powders, perlite, and all kinds of powdery additives.



    Main Technical Data:



    Packing range Packaging Accuracy Packing speed

    Working

    Temperature

    Valve hole length Bag length

    Bag height



    Air pressure
    10-50 kg ±0.5~1% 5-8 bags/min. ±0.2% 90-165 mm

    90-180 mm



    300-900 mm 6-8 bar
