25 / 50 KG Auto Valve Bag Packing Machine for Powdery Additives 5 - 8 Bags per Minute

25 / 50 KG Auto Valve Bag Packing Machine for Powdery Additives 5 - 8 Bags per Minute


Product Details:

Place of Origin: People's Republic of China
Brand Name: Hongsen Intelligent
Model Number: HS-FK

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiable
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Filling Range: 10-50 Kg Automatic Bagging Machine Speed: 5-8 Bags/min
Drive: Pneumatic Package: Valve Bag
Type: PVPE Automation Level: Full Automatic
High Light:

valve bag filling machine


automatic filling and packing machine

25 / 50 KG Powdery Additives Valve Bag Filling and Packing Machine 5 - 8 Bags per Minute



The valve bag filling and packing machine is an air flow bagger designed to fill dry solids, like granulated pellets, cement, adhesives, renders, powders into valve bags. The PVPE works on the basis of air fluidisation of the product and differential pressure resulting in product flow into valve bags. The filling speed relates to material ratio, fluidity, granularity, humidity, etc.


Automatic Bag-Fetching Manipulator:


The valve bag is sucked up by the suction cup, and the manipulator stretch open the bag mouth to insert the bag into the material discharge hole. The vacuum of the standard suction cup is generated by the suction system. This system can give timely feedback of product status to ensure that each bag is accurately placed to the packaging machine discharge hole.


Bag Magazine:


It is big enough to keep 120 empty bags here and there is still place more bags. This bag magazine coordinates the automatic bag-fetching manipulator to realize fully automatic operation of bag taking. When the present batch of bags are used up, the next batch will be automatically replenished. The operator on site can put the bags into bag magazine while the machine is running. So there is no need to stop the production for supplement which will ensure continuous packing.


One full automatic pneumatic type valve bag filling machine comprises of:


1. PVPE (Pneumatic Valve Packing Equipment)

2. Manipulator (mechanical arm)

3. Bag magazine

4. Conveyor


Main Technical Data:


Packing range

10-50 kg

Packing accuracy


Valve hole size

50 mm, filling spout

Valve hole length

90-165 mm

Bag length

90-180 mm

Bag height

300-900 mm

Air consumption

To be specified


This equipment can also be customized as per different customers’ special requirements.

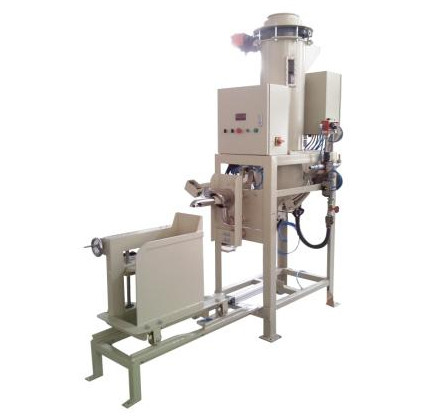

25 / 50 KG Auto Valve Bag Packing Machine for Powdery Additives  5 - 8 Bags per Minute
