|Design:||Modular||Application:||Limestone, Gypsum Powder, Etc.|
automatic packing line,
automated packaging systems
Mobile Trailer Type CaCO3 or Land Plaster Packaging Line for Limestone and Gypsum Quarries
The machinery and conveying system inside the trailer is of really compact design, which has successfully past our feasibility and reliability tests. The line is mainly composed of the "modules" as shown below:

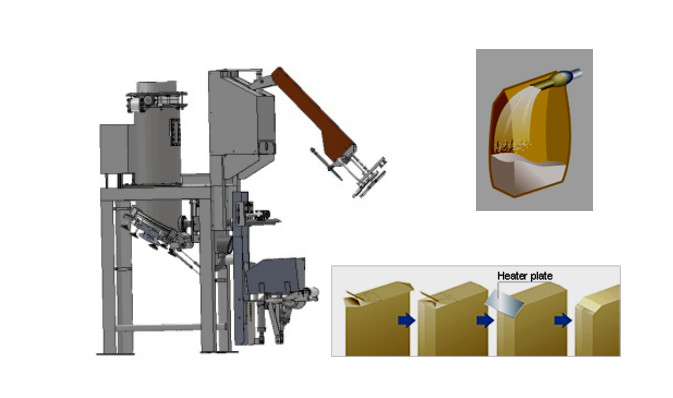

1. FFS form-fill-seal packaging machine, the tubular film can be replenished by a forklift at one openable end of the trailer and material feeding unit can also be added as per site condition and customer requirement;
2. Robot palletizing system, special design and application to enable it to work in a trailer;
3. Additional stretch wrapping machine can also be integrated into the trailer for further complete the processing;
4. Conveying system, including roller conveyors, turn table, lowering device, etc. The full pallets then will be discharged to the exit of the packaging line at the determined opening of the trailer and picked up by a forklift to be loaded unto trucks or into containers.
Customer's demand is the factor we shall always attach great importance to. We will provide you with our best solution and advise after listening to and evaluating your demand. If you only need movable packaging machine without anything additional and you will carry the packaged bags manually, we will make the trailer wholly form-fill-seal packaging system specially for you; if you need your material both accurately packaged and nicely palletized at your site, we will surely tailor-make FFS bag packaging and robot palletizing to meet your requirements; and if you want to finish all the end-of-line procedures in the trailer, that means, you desire to make the full pallets be wrapped, we are willing to add stretch wrapping machine into the bigger size trailer.
Features of the mobile packaging system:
1. Great flexibility, customers are free to pack products at the desired location;
2. Significantly reduced time and cost of transportation;
3. Modular design of the line, so additional machines could be integrated into the trailer;
4. Cost effective, there is no need for you to invest for factory at each of your site, you can just rent the movable "factory" or buy one for all your sites;
5. Tailor-made solution to customize your order.
With our mobile packaging line, you can either rent it out to quarries or yards or use it for several different sites you have. We also welcome you to be our distributor in certain country or area to expand the promissing market.
Hongsen Intelligent has been in the packaging automation machinery design and manufacuture since 2004 dated back to our predecessor Wuxi Litian. At present, our available packaging machinery covers a lot of standard model machines and non-standard equipment, including everything from semi-automatic and full-automated open-mouth bag packaging machine, valve bag packaging machine, FFS bag packaging machine, VFFS pouch packaging machine, case packer to mechanical palletizing machine, robotic palletizer, stretch hooding machine, as well as mobile packaging and palletizing line.
We started the develop of our mobile packaging system in 2017, since noticing the actual need to package materials right at the origin or distribution center. This type mobile packaging and palletizing line is actually a movable "factory" container on wheels which can be driven to any location for material and products processing.
