    Product Details:

    Place of Origin: People's Republic of China
    Brand Name: Hongsen Intelligent
    Model Number: HS-320, HS420, HS-520, HS-620, HS820, HS1250

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PC
    Price: Negotiable
    Packaging Details: Wrapping film plus wooden case
    Delivery Time: 30-45 days
    Payment Terms: L/C, T/T
    Supply Ability: 30 sets per month
    Contact Now
    Detailed Product Description
    Machine Type: VFFS Applicable Products: Granular & Lump Products
    Configuration: Z-shape Lifter, Multi-head Weigher, VFFS, Conveyor Optional Devices: Check Weigher, Metal Detector, Etc.
    Packing Material: Plastic Film Control And Operation: PLC And HMI Touch Panel

    Puffed Food VFFS Packaging Machine for Potato Chips with Electronic Multi-head Weigher


    Equipment Composition
    1. Vibration material feeding lifter Z-shape
    2. Multi-head weigher
    3. Automatic packaging machine
    4. Output conveyor
    5. Check weigher (Optional)
    6. Metal detector (Optional)

    Production flow
    Material lifting → automatic bag making → automatic metering → automatic filling → automatic nitrogen charging → automatic sealing → automatic coding → output conveying
    Set constant temperature when power on → set packaging machine parameters (bag size and weight) → manually put material into material box → material loading → weighing → production date printing → bag making → material filling → sealing → cutting off → finished product conveying out



    Functional features of the complete set of machine
    1. Colored touch screen and high precision double shaft output PLC control, which enables the completion of bag making, metering, filling, sealing, coding and cutting operations all at one time;
    2. Pneumatic and electric control cabinets are separate, which is of low noise and stable circuit;
    3. Double belt servo type film-drawing of low resistance, which shapes bags well with good appearance and makes belts less prone to abrasion;
    4. Servo control adopted to realize high precision positioning and accurate size;
    5. External film supplying system makes the installation and change of packing film much easier;
    6. The deviation adjustment of bags can be easily down on the touch screen;
    7. The whole set of machine is of closed structure design, which can effectively prevent dust goes into the machine.
    8. High weighing accuracy, high efficiency; material will not be broken.
    9. Air inflation and deaeration; date printing; full automatic conveying.

    Application range
    Applicable to the packaging of a variety of granule and lump materials including but not limited to puffed food, potato chips, crispy rice, jelly, confection, pistachio nut, apple slice, dumplings, biscuit, dry fruit, melon seeds, frozen food.

    Technical data of the packaging unit


    Model No.HS-320HS-420
    Bag making sizeL60-250mm, W50-150mmL60-300mm, W60-200mm
    Packing speed25-75 bags/min. (depends on packaged weight)25-65 bags/min. (depends on packaged weight)
    Power supply220V, 50-60HZ, 3.0 KW220V, 50-60HZ, 3.6 KW
    Compressed air6-8 kg/m2 ~0.3m3/min.6-8 kg/m2 ~0.3m3/min.
    Machine weight400 kg450 kg
    Overall dimension1450*1000*1400 mm1450*1100*1500 mm
    Model No.HS-520HS-620
    Bag making sizeL80-350mm, W80-250mmL100-400mm, W100-300mm
    Packing speed25-75 bags/min. (depends on packaged weight)25-65 bags/min. (depends on packaged weight)
    Power supply220V, 50-60HZ, 3.0 KW220V, 50-60HZ, 3.6 KW
    Compressed air6-8 kg/m2 ~0.3m3/min.6-8 kg/m2 ~0.3m3/min.
    Machine weight500 kg600 kg
    Overall dimension1450*1000*1400 mm1450*1100*1500 mm
    Model No.HS-820HS-1250
    Bag making sizeL120-500mm, W120-400mmL150-800mm, W150-600mm
    Packing speed25-75 bags/min. (depends on packaged weight)25-65 bags/min. (depends on packaged weight)
    Power supply220V, 50-60HZ, 3.0 KW220V, 50-60HZ, 3.6 KW
    Compressed air6-8 kg/m2 ~0.3m3/min.6-8 kg/m2 ~0.3m3/min.
    Machine weight650 kg800 kg
    Overall dimension1450*1000*1400 mm1450*1100*1500 mm

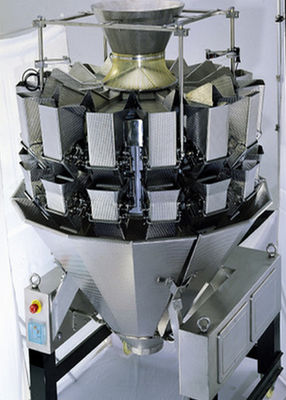

    Functional Parameters of the Multi-head Weigher

    Function features of the multi-head weigher
    A. The vibration of the vibrators can be automatically adjusted to enable even material dropping and combination;
    B. High precision digital weighing sensors and AD modules used for accurate metering;
    C. Multiple drop and succeeding drop of materials selectable to present the block of filling spout by loose structure material;
    D. Unqualified material discharge function, integrated material collecting system, and default setting restorable;
    E. Multi-language operating system to select the customer required language.

    Technical data of the multi-head weigher



    DesignationElectronic Multi-head Weigher
    Weighing range10-2000g
    Average deviation per bag0.2-0.5g
    Weighing precision0.1-1.5g
    Maximum weighing speed
    Hopper capacity1300 ml
    Hopper typeDouble no-memory hopper
    Drive modeStepper motor
    Rated power2000W
    Power supply220V/50HZ
    Overall dimensionL1250*W1020*H1348 mm


    Vibration Material Feeding Lifter Z-shape


    TypeVibration material feeding lifter Z-shape
    Power voltage3 phase 380V 50-60Hz
    Machine power0.75-3KW
    Convey measure1-8m3/h
    Single bucket volume1.8L
    Conveying capacity7200L/h


    Technical Data of Output Convey


    Machine model130
    Conveying height800mm
    Machine power40W
    Max. speed200mm/min
    Outer dimension1300(L)*430(W)*800(H)mm
