Cold Stretch Hood Machine For Wrapping Palletized Fertilizer , Pallet Wrapping Machine

Cold Stretch Hood Machine For Wrapping Palletized Fertilizer , Pallet Wrapping Machine

    • Cold Stretch Hood Machine For Wrapping Palletized Fertilizer , Pallet Wrapping Machine
    • Cold Stretch Hood Machine For Wrapping Palletized Fertilizer , Pallet Wrapping Machine
  • Cold Stretch Hood Machine For Wrapping Palletized Fertilizer , Pallet Wrapping Machine

    Product Details:

    Place of Origin: People's Republic of China
    Brand Name: Hongsen Intelligent
    Model Number: HS-FM

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PC
    Price: Negotiable
    Payment Terms: L/C, T/T
    Contact Now
    Detailed Product Description
    Wrapping Mateiral: Rolls Of Film Wrapping Mode: Cold Stretching
    Stretching Direction: Vertical Hooding Total Power: 12 KW
    Film Replenish: 2 Minutes Film Opening: Vacuum & Mechanical

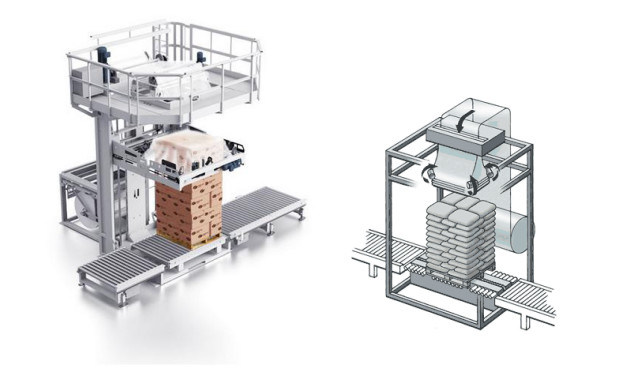

     Cold Stretch Hooding Machine for Wrapping Palletized Fertilizer



    Descriptions:



    Stretch hood technology offers significant benefits when compared to other types of pallet wrapping methods- from potential cost savings through reduced film and energy consumptions over material handling convenience to product display opportunities and improved marketability



    Our new model stretch hooding system is completely different with normal film wrapping machine. The adoption of our system will help you realize overall complete protection of full pallet products.Space is often at a premium in today's production, and the small footprint in the packing area. The machine is small that is as elegant as it is functional. We are talking about a machine. Small in sizes but huge in effect, specially designed for operating efficiency and reliability with energy-saving features



    Features:



    A. High strength steel frame adopted and the stability of the structure is high;

    B. Four-chain type lifting frame, QCS system;

    C. Vertical stretching adopted, which can reduce film consumption and the packing of which is more complete than simply horizontal wrapping; in the same time, it’s of higher dustproof level and waterproofness and the full pallet will be less likely to loosen when it topples;

    D. Unmanned operation, which can save more labor cost and improve work efficiency.



    Equipment Constituent:



    A. Adhesive film delivering and hood-making unit

    • There is a pair of splayed cutters and every of the four corners of each cutter can be rotated. The lifetime of each cutter is over one year.
    • It can be lowered to ground level for film change and maintenance. Film change takes around 2 minutes, which can save plenty of time.
    • Double film opening system of vacuum and mechanical is adopted to avoid the influence of wind and static electricity.

    B. Stretching unit

    • Hydraulic stretching system adopted, whole-process monitoring;
    • Wide range of applicable fields;
    • Ensure that the four corners of the stretched film are of the same thickness, but not becoming thinner.

    It is applicable to the overall complete wrapping of full pallets in numerous industries including food, grain, fertilizer, chemicals and building material.



    Model Lifting Frame Motor Quantity Power per Pallet Air per Pallet Air Pressure Total Power
    HS-FM Up and down 4 sets 0.15KWH 85N.litres 6bar 12kw
