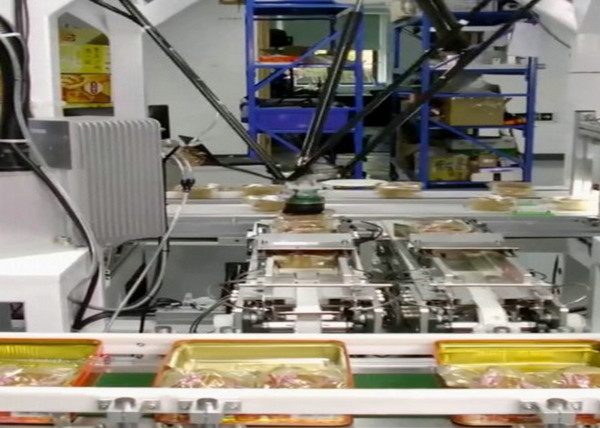

High Precision Delta Parallel Manipulator For Case Packing And Packaging

High Precision Delta Parallel Manipulator For Case Packing And Packaging

High Precision Delta Parallel Manipulator For Case Packing And Packaging

Product Details:

Place of Origin: People's Republic of China
Brand Name: Hongsen Intelligent
Model Number: HSR3-800-250-A, HSR3-1100-250-A

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiable
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Type: Delta Robot Functions: Picking, Sorting, Packaging And Handling
Payload: 3 Kg Mounting Method: Suspension/support
Re-positioning Precision: ±0.20mm Axes Quantity: 4

High Speed High Precision Delta Robot for Case Packing and Packaging





Delta robot is a high-speed, light-load parallel robot, generally through the teaching programming or visual system to capture the target object by the three parallel servo axis to determine the grip center (TCP) spatial location and to achieve the target object transport, processing and other operations. The Delta robots are mainly used in food, medicine and electronic products processing, assembly. Delta robot is widely used in the market because of its light weight, small size, fast moving speed, accurate positioning, low cost and high efficiency.



A delta robot application system consists of the following three parts: robot, conveying line and robot installation frame.



Functions of delta robots: Smart Pick, Rapid Sorting, Food Packaging, Material Handling.



Characteristics of this type of our delta robots:



A. No cumulative error, high accuracy;
B. The drive device can be placed on the platform or close to the location of the platform, so that the movement part is of light weight, high speed, good dynamic response;
C. Compact structure, high rigidity, carrying capacity;
D. Perfectly symmetric parallel mechanisms have better isotropy;
E. The work space is small;


According to these characteristics, our delta robots are widely used in areas where high rigidity, high accuracy or large loads are required without significant work space.



Main Technical Data:



Model Axes Load Max Reach Re-positioning precision IP Grade Mounting Method Weight Temperature & Humidity
HSR3-800-250-A 4 3kg 800mm ±0.20mm IP65 Suspension/Support 140kg 3-45℃,25%-95%
HSR3-1100-250-A 4 3kg 1100mm ±0.20mm IP65 Suspension / Support 150kg 3-45℃,25%-95%



High Precision Delta Parallel Manipulator For Case Packing And Packaging
