I.Applications:
It is applicable to the filling and packaging of a variety of materials in numerous industries including food, grain, fertilizer, chemicals and building material. it can also keep the banknotes, documents or slips, etc. from being oxidized, going mouldy, being damaged by worms and being humidified while they are kept for a long time.
II.Work Principle of the Machine

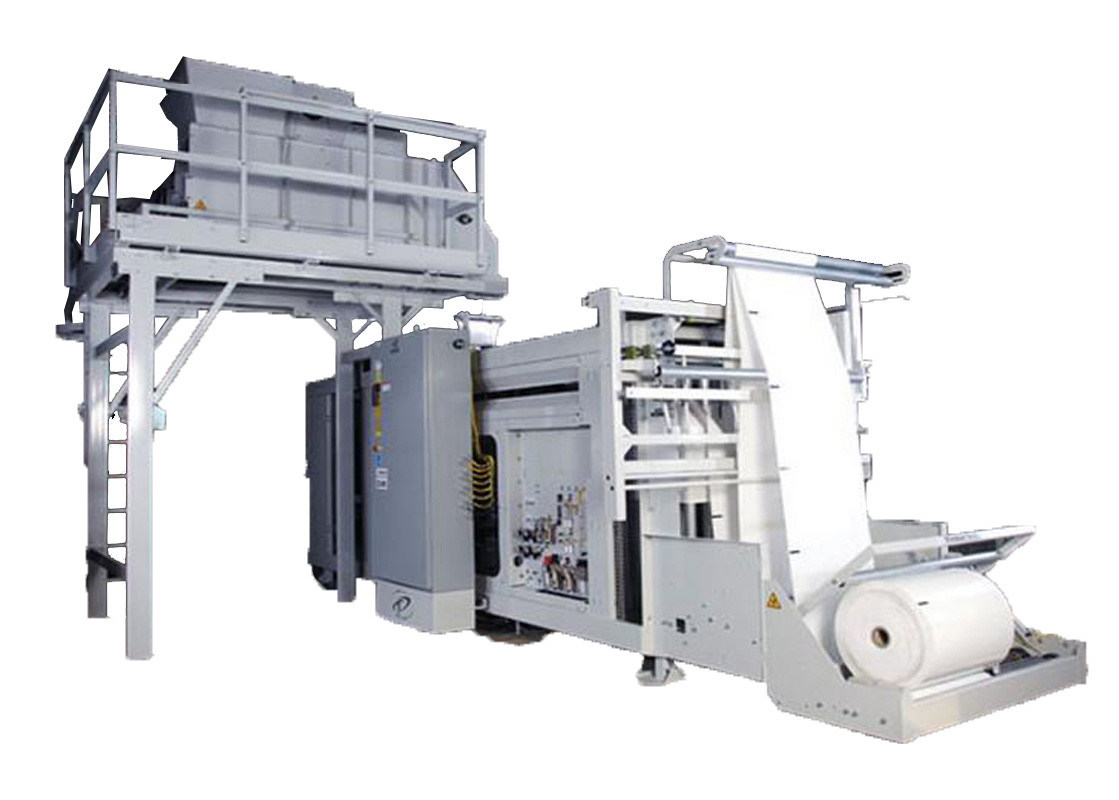

1. Equipment Composition
(1).Film coil bracket
(2).Bag applicator
(3).Corner sealer
(4).Bag length adjuster
(5).Bag feeder
(6).Bottom sealer
(7).Bag opener
(8).Filling spout
(9).Bag clamp
(10).Bag mouth sealer
(11).Bag mouth cooler
(12).Pendulum arm
(13)standing bag conveyor (including bottom-seal cooler, shaker, intermittent moving conveyor and constant running conveyor )
III.Functional features of the whole set of machine
- Compact structure, high integration, floor space saving;
- Continuous supply of large rolls of film to improve the speed of packaging and reduce the frequency of changing bag types and replenishing bags;
- Length of bag changeable according to different materials to reduce packaging cost;
- Thermal sealing technique adopted to improve sealing quality and product appearance;
IV.Advantages of FFS packaging machine
1.Bag de-aeration function; during the process of empty bag corners sealing, small triangular holes (size of hole adjustable, one hole each of the four corners) can be punched; the holes connect the inside of the bag along the seal which can not only ensure smooth de-aeration during pressing, but also prevent dust going inside the bag;
2.High safety level; fully enclosed structure; interlock system, machine will stop and alarm in case of intrusion and the machine can only be started again after manual confirmation and reset;
3.Analog control adopted for sealing system which is of features of fast heating speed and wide range of heating temperatures (temperature can reach 300℃); heating temperature can be set directly on touch screen; when temperature of heating elements reach the set value, the controller sends signal to PLC to control the next step; sealing reliability ensured and working speed of the machine not affected;
4.Sealing cooling system available; taking advantage of vortex cooling principle to use cold air under 0℃ (lowest -40℃) to cool the bottom seal and mouth seal successively; the cold air generated by vortex tube blows directly onto the seal part, so the heat exchange efficiency is high and reliable; the seal can be cooled timely when environment temperature is high;
V. Technical Parameters
1.1Electric
Powder: AC 220V/380V, 50Hz, three-phase five-wire
Voltage fluctuation: ±7%
Frequency fluctuation: ±1%
Instrument earthing: <4Ω
Protection earthing: <10Ω
1.2 Compressed air
Supply pressure: 0.4MPa~0.6MPa
Temperature: environment temperature
Filter fineness: granularity less than 5um
Dew point: -40ºC
2.1.Bag
Bag type: aluminum-plastic film, lamination film (for pillow bags)
Empty bag size: to be determined by customer
2.2.Weighing and detecting unit
Weighing capacity: 800-1200bags/h
Average deviation of weighing: ±0.2% (sampling probability 2σ)
Sampling probability: 2σ
Weighing range: 25kg-50kg/bag
2.3.Site conditions
Air consumption: 110Nm3/h
Power consumption: 15kW
2.4.Others
Machine noise: below 85 dB
Machine surface protection: powder coating, thickness 80~90 um
Machine colour: electric cabinet and operation box are light brown - GSB G51001-94-GY09; protection hood, safety fences, etc. are international safety colour - GSB G51001-94-Y06; machine body is Hongsen white.
3.1 Vacuum system
Oil-less vacuum pump with air tank.
Degree of vacuum: 40mbar
Noise level: ≤75dB
Motor powder: 4.5Kw
Air consumption: 230Nm3/h
3.2 Outer dimension
2600mmL * 1450mmW * 3235mmH (weigher included) Final outer dimension shall be determined by customer’s site condition.
