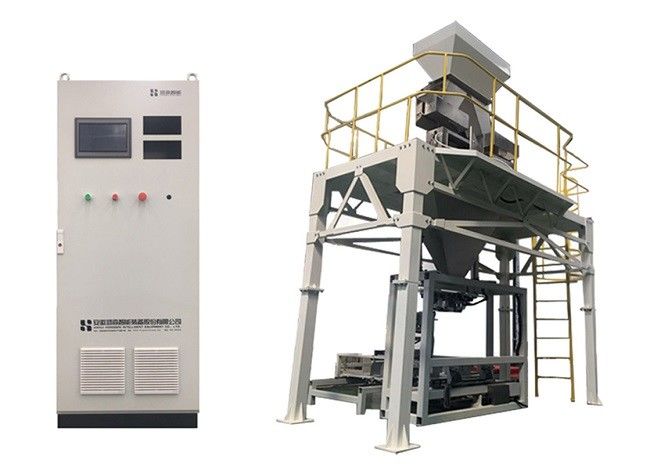

PLC Control Automatic Bag Packing Machine PLC Control For Dextrose /PVC Powder/ Sorbitol Powder

Describtion

Full automatic open-mouth bag packaging machine is a complete set of machine which is composed of Weighing unit, automatic bag feeding unit and sealing & conveying unit to realize material weighing, automatic bagging, material filling and automatic sealing.

Applicable materials to fill

A variety of particle/powder/flaky materials in chemical / fertilizer / sugar / grain / food / fodder / medicine / building material industries such as sodium carbonate, oil residue, alkali, rice, compound fertilizer, ammonium phosphate. as well as bulk cargo in ports.

Process Flow

Weighing → automatic bag feeding → material filling → automatic sealing → output conveying

Technical Parameters

1. Precision grade: 0.2％FS

2. Weighing range: 10--25Kg/bag; 25--50Kg/bag

3. Weighing accuracy: single deviation ≤±0.2％; average deviation ≤±0.1％

4. Packaging capacity:

HS-QZD1000: 800—1000 bags/h (powder/granule)

HS-QZD1200: 1000--1200 bags/h (granule)

HS-QZD1400: 1200--1400 bags/h (granule)

5. Ambient temperature: -15℃～45℃

7. Relative humidity: ≤95％

8. Powder supply: 220V / 380V 50HZ

9. Voltage fluctuation range: ±10％

10. Air supply: pure compressed air, 0.4～0.6Mpa

 Weight Detect

This machine is suitable for the detection of terminal process of large packing line. With multiple load sensor control and touch screen control, more than 10 different weight specification parameters can be stored to meet different demands. During transportation, the product weight detection is automatically cleared. The unqualified product alarm lamp indicates and stops the transmission or eliminates the unqualified super standard bag detection by configuration of the automatic stripping device

Kick-off Mechine

When the detector sends out the unqualified signal, the material bag will be picked out of the conveyor line.

Carrying Capacity:800bag/h Conveying Speed:0.5m/s

Conveyor Roller Width:600mm Motor Power:2×0.75KW

High Level Palletizer / Robot Palletizer

High Level palletizer is a type of high speed full automatic palletizing equipment. Compared with robot palletizer and low-position palletizer, HS-GW-1200 type full automatic High Level palletizer is the one of higher height and mounting dimension.

Full automatic High Level palletizer is usually used together with full automatic packaging machine to constitute a full-automatic packaging and palletizing production line. The line includes automatic bagging, automatic weighing, automatic edgefolding and sealing, check weigher, metal detection, nonconformity reject mechanism, automatic bag flattening and pressing, bag direction changing, bag layering arrangement, palletizing and lifting mechanism.
