Place of Origin: | People's Republic of China |
Brand Name: | Hongsen Intelligent |
Model Number: | HS-FM |
Minimum Order Quantity: | 1 PC |
---|---|
Price: | Negotiable |
Payment Terms: | L/C, T/T |
Mateiral: | Tubular Film | Method: | Cold Stretching |
---|---|---|---|
Direction: | Up-down | Protection: | Whole Pallet |
Structure: | Tight And Strong | Film Application: | Vacuum |
High Light: | stretch hood wrapping machines,stretch film wrapping machine |

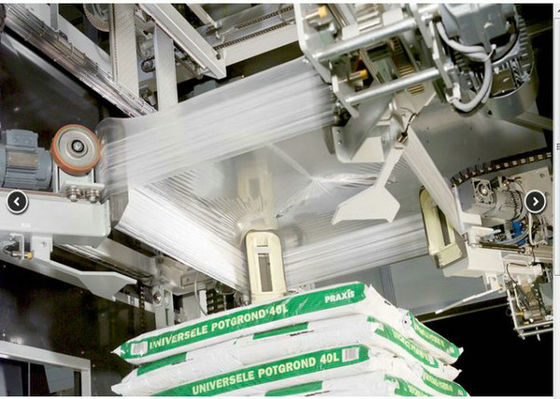

Stretch Hooding Machine for Wrapping Regular Shaped Products and Machines on Pallets
Our new model stretch hooding system is completely different with normal film wrapping machine. The adoption of our system will help you realize overall complete protection of full pallet products.The max production capacity is about 60 pallets per hour(according to the pallet's height, the capacity may have slightly differences);
The film which is sealed on the top becomes the bag and it is effectively waterproof;
The products which are packaged together by the film in the pallets are very suitable for transportation. And it can effectively prevent product shedding;
Equipment Constituent:
A. Adhesive film delivering and hood-making unit
There is a pair of splayed cutters and every of the four corners of each cutter can be rotated. The lifetime of each cutter is over one year.
It can be lowered to ground level for film change and maintenance. Film change takes around 2 minutes, which can save plenty of time.
Double film opening system of vacuum and mechanical is adopted to avoid the influence of wind and static electricity.
B. Stretching unit
Hydraulic stretching system adopted, whole-process monitoring;
Wide range of applicable fields;
Ensure that the four corners of the stretched film are of the same thickness, but not becoming thinner.
It is applicable to the overall complete wrapping of full pallets in numerous industries including food, grain, fertilizer, chemicals and building material.
Model |
Lifting Frame |
Motor Quantity |
Power per Pallet |
Air per Pallet |
Air Pressure |
Total Power |
HS-FM |
Up and down |
4 sets |
0.15KWH |
85N.litres |
6bar |
12kw |
Features:
A. High strength steel frame adopted and the stability of the structure is high;
B. Four-chain type lifting frame, QCS system;
C. Vertical stretching adopted, which can reduce film consumption and the packing of which is more complete than simply horizontal wrapping; in the same time, it’s of higher dustproof level and waterproofness and the full pallet will be less likely to loosen when it topples;
D. Unmanned operation, which can save more labor cost and improve work efficiency.
