Dry Solid Powers Valve Bag Filling Machine with Conveyor Automatic Packaging

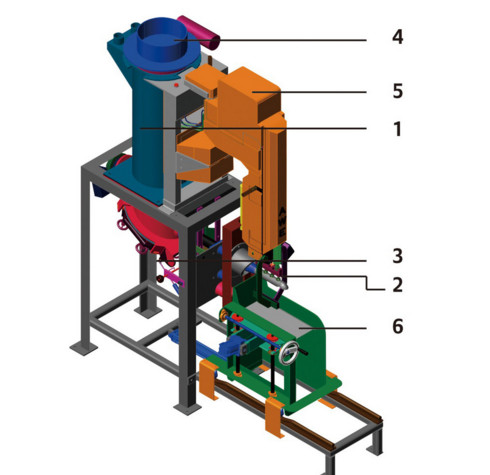

One full automatic pneumatic type valve bag filling machine comprises of:
1. PVPE (Pneumatic Valve Packing Equipment)
2. Manipulator (mechanical arm)
3. Bag magazine
4. Conveyor
The PVPE (Pneumatic Valve Packing Equipment) is an air flow bagger designed to fill dry solids into valve bags. The PVPE works on the basis of air fluidisation of the product and differential pressure resulting in product flow into valve bags.
Automatic Bag-Fetching Manipulator:
The valve bag is sucked up by the suction cup, and the manipulator stretch open the bag mouth to insert the bag into the material discharge hole. The vacuum of the standard suction cup is generated by the suction system. This system can give timely feedback of product status to ensure that each bag is accurately placed to the packaging machine discharge hole.
Materials to Fill:
Including but not limited to dry powders, premixes or materials of diameter less than 7 mm.
Main Technical Data:
| Packing range |
10-50 kg |
| Packing speed |
5-8 bags/min. |
| Packing accuracy |
±0.5~1% |
| Valve hole size |
50 mm (2’) suitable, filling spout |
| Valve hole length |
90-165 mm |
| Bag length |
90-180 mm |
| Bag height |
300-900 mm |
| Air pressure |
6-8 bar |
Application:
It is suitable for widely suitable for food, medicine, chemical industry, such as food additive, milk powder, bean powder, coffee powder, tea powder, instant powder, flour powder, medical powder, and cosmetic powder etc.
