Automated Carton Box Case Packer Machine with Continuous Flat Carton Supply

Automated Carton Box Case Packer Machine with Continuous Flat Carton Supply

Automated Carton Box Case Packer Machine with Continuous Flat Carton Supply

Product Details:

Place of Origin: People's Republic of China
Brand Name: Hongsen Intelligent

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiable
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Automatic Grade: Full-automated Control Mode: PLC
Machine Type: Carton Packaging Machine Driven Type: Electric
Flat Carton Supply: Carton Magazine Application: FMCG, Bottled Water, Etc.
High Light:

automatic case packer

,

case packing equipment

Automated Bottled Water Carton Box Case Packer with Continuous Flat Carton Supply





This fully automated carton box packing machine is able to complete all the procedures in case erecting, case packing and case sealing all at once including flat carton fetching, case forming, products filling-in and automatic sealing as well as full carton discharge. It makes the process much simpler and more continuous than manual and semi-automatic carton opening, loading and sealing. For carton sealing, hot melt adhesive tape is used to make the process healthier and the finished carton look much tidier and more beautiful.

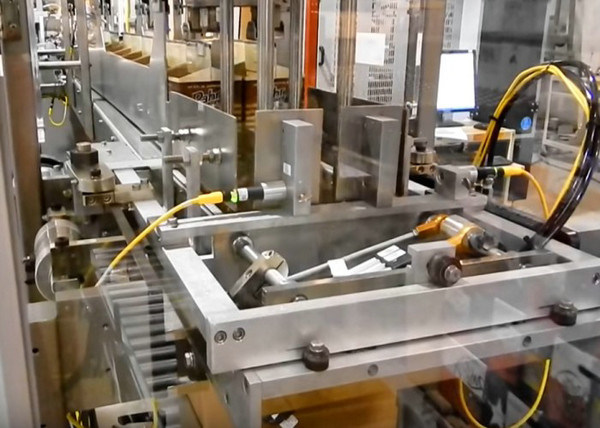

The machine consists of electric cabinet, conveyor, sensors, flat carton magazine, carton fetching mechanism, bottle/package turning device, bottle/package pusher, buffer mechanism, lifting arm, encasing device and sealing station.



Key Features:


1. Use continous infeeding method to increase carton box supply speed and decrease the overall cost of the case packer machine;
2. Accurate positioning of fixtures and products to ensure 100% taking and encasing of the products;
3. Brand-name key and moving components to enable the machine stable running, easy maintenance, and long service life.
4. Adopt HMI system for easy operation, fast communication and strong diagnosis ability. High automation grade, each step is controlled by PLC system and executed accurately by field mechanisms as programmed.



Key Technical Data:

Carton sizes Customized according to samples
Feeding height Based on the actual conveying height
Capacity 8-30 carton/min (can be customized)
Rated powder 6 KW
Power supply 380V 50/60Hz
Air source 0.6-0.8Mpa
Packing format One layer or multi-layers


After-sales service & Installation/commissioning:


We guarantee the quality of the main parts within 12 months after delivery. After one year warranty period, we will provide our best price for any of your requested part change or maintenance at your site. We will also provide life long technical support for you. Whenever you have technical question in the process of using our machinery, we will surely do our best to support you. We will dispatch our experienced engineers to instruct the installation and commissioning. Cost will be further agreed between us and the customer. The customer shall provide necessary site facilities and assistance for the installation and commissioning.
