Automatic Pallet Magazine System PLC and Touch Screen Controlled with Complte Set of Conveyors

Automatic Pallet Magazine System PLC and Touch Screen Controlled with Complte Set of Conveyors

    • Automatic Pallet Magazine System PLC and Touch Screen Controlled with Complte Set of Conveyors
    • Automatic Pallet Magazine System PLC and Touch Screen Controlled with Complte Set of Conveyors
    • Automatic Pallet Magazine System PLC and Touch Screen Controlled with Complte Set of Conveyors
  • Automatic Pallet Magazine System PLC and Touch Screen Controlled with Complte Set of Conveyors

    Product Details:

    Place of Origin: People's Republic of China
    Brand Name: Hongsen Intelligent
    Model Number: TPK-1100

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PC
    Price: Negotiable
    Packaging Details: Wrapping film plus wooden case
    Delivery Time: 35-50 days
    Payment Terms: L/C, T/T
    Supply Ability: 20 sets per month
    Contact Now
    Detailed Product Description
    Magazine Capacity: 10 Pallets Running Speed: 10m/min.
    Rated Power: 0.4 KW Pallet Size: As Per Customer's Requirement
    System Control: PLC & Touch Screen Conveying System: Empty Pallet Conveyor, Palletizing Conveyor, Loaded Pallet Conveyor & Stand-by Conveyor For Forklift

    Automatic Pallet Magazine System PLC and Touch Screen Controlled with Complte Set of Conveyors

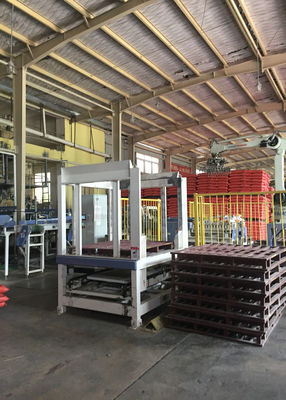

    Automatic pallet magazine system is composed of empty pallet conveyor, palletizing conveyor and loaded pallet conveyor. This system is widely used for finished products palletizing in various packing lines. Cooperating with palletizing robotic arm/manipulator, it can massively improve automation degree and decrease labour intensity.



    Features

    1. Touch screen is used for centralized control and the user can observe the running status of the system anytime;

    2. The system is of compact structure and simple to install and maintain.



    Composition of the System

    1. Electric Part

    A. The electric control comprises of touch screen, PLC, and basic electrical components.

    B. There are two buttons “power-on” and “power-off” on the panel of the electric cabinet; when the button “power-on” is pressed, the system gains power, and when the button “power-off” is pressed, the system is cutoff of power.



    2. Blocking Mechanism

    A. The blocking mechanism is made up of electromagnetic valves, air cylinder and stopper block.

    B. On each electromagnetic valve, there is one button to test the air cylinder.



    3. Conveying System

    Pallet magazine is the equipment to store and dispatch pallets for automatic palletizing system. It is composed by the following parts:

    A. Empty pallet magazine

    To store empty pallets and dispatch single pallet out of the magazine; it can store at most 10 pallets.

    B. Empty pallet conveyor

    The empty pallet dispatched from the pallet magazine will be conveyed to the palletizing conveyor by this conveyor.

    C. Palletizing conveyor

    The empty pallet from the empty pallet conveyor will be used for palletizing here; after finishing the palletizing, the pallet will be conveyed to the loaded pallet conveyor.

    D. Loaded pallet conveyor (standard dimension)

    Type: Chain conveyor

    Length: 1800 mm

    Height: 650 mm

    E. Stand-by conveyor for forklift

    Type: Non-power roller conveyor

    Length: 1800 mm

    Height: 650 mm



    Different sizes of pallet magazine can be custom made as per customers’ requirement and site condition. As to the material of the magazine, there are carbon steel and stainless steel for customers to choose.



    Technical Specifications



    Parameters of the Automatic Pallet Magazine System

    Model No. TPK-1100
    Rated voltage AC380V
    Rated power 0.4KW
    Air pressure 0.5MPa
    Running speed 10m/min
    Pallet size As per customer requirement
    Magazine capacity 10 pallets
    Temperature -10℃-+40℃
    Humidity 90% relative humidity (no condensing)
    Touch screen Weinview
    Other electric components Schneider
    PLC Mitsubishi
    To design the pallet magazine according to the pallet size provided by the customer
