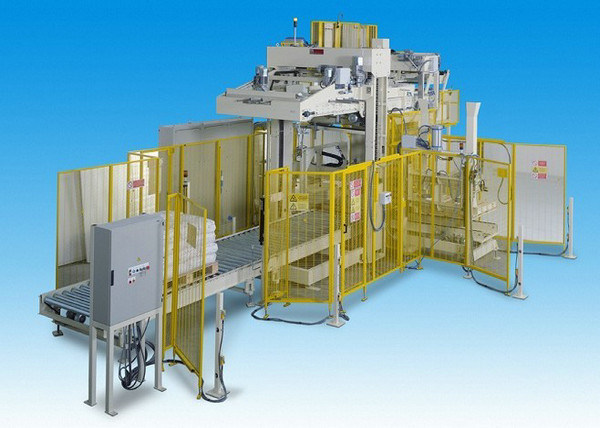

Affordable Low Level Palletizer for the Stacking of Cartons / Bags / Barrels

Affordable Low Level Palletizer for the Stacking of Cartons / Bags / Barrels

    • Affordable Low Level Palletizer for the Stacking of Cartons / Bags / Barrels
    • Affordable Low Level Palletizer for the Stacking of Cartons / Bags / Barrels
    • Affordable Low Level Palletizer for the Stacking of Cartons / Bags / Barrels
  • Affordable Low Level Palletizer for the Stacking of Cartons / Bags / Barrels

    Product Details:

    Place of Origin: People's Republic of China
    Brand Name: Hongsen Intelligent

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PC
    Price: Negotiable
    Packaging Details: Wrapping film plus wooden case
    Delivery Time: 35-50 days
    Payment Terms: L/C, T/T
    Supply Ability: 10 sets per month
    Contact Now
    Detailed Product Description
    Function: Stacking Of Contained Materials Maximum Speed: 400-800 Bags/h
    Package Weight: 25-50 Kg Control System: PLC
    Minimum Size Of Pallet: 800*1100mm Maximum Size Of Pallet: 1100*1400mm

    Affordable Low Level Palletizer for the Stacking of Cartons / Bags / Barrels





    Product Introduction

    The low level palletizer stacks contained materials (in cartons, wove bags, barrels, etc.) on the (wooden/plastic) pallet according to a certain arrangement automatically. After stacking several layers, the full pallet will be conveyed out for further packing or to the warehouse by a forklift. The palletizer is controlled by PLC touch screen, which can realize intelligent operation management and greatly reduce the number of employees and the intensity of labor. It adopts the design concept of high speed, smooth running and space saving. Using the split-off plate, it runs more rapidly and saves more space. It’s a quickly adjustable multi-purpose machine, which you do not need to worry about the changing of stacked products.

    Application range: it is applicable to packages of various materials and shapes, such as corrugated cartons, plastic boxes, barrel packages and bags. Our low level palletizer is used in automated production in numerous industries including but not limited to petroleum, chemical, fertilizer, grain, feed and building material.



    Process flow

    Conveyors transmit the contained material → shaping mechanism flattens and presses the packages (bags) → grasp and palletize → loaded pallet conveys out



    Equipment Composition

    1) Shaping conveyor

    2) Palletizer

    3) Pallet magazine

    4) Pallet conveyor

    5) Loaded pallet conveyor



    Performance features

    A. HMI touch screen adopted which can display production speed, fault cause and position; high level of automation;

    B. PLC used to program and control quantity of stacking layers, pallet supply and pallet discharge;

    C. Famous brand electric components like Schneider are used to ensure the reliability of performance, interchangeability of components and durability;

    D. The chains used are of advantages such as good resistance to wear, high precision and stable running;

    E. Stable and efficient stacking can greatly save manpower;

    F. Pallet magazine is of high capacity, which can store 12-15 empty pallets; automatic pallet supply can be realized.



    Technical Parameters

    1. Maximum speed: 400-800 bags/h

    2. Package (bag) weight: 25-50 kg

    3. Minimum size of pallet: 800*1100mm

    4. Maximum size of pallet: 1100*1400mm

    5. Maximum height: 2000mm (pallet height included)

    6. Maximum weight: 2000kg

    7. Control system: PLC

    8. Powder: 380V-50HZ



    Low level Palletizing System

      Designation Unit Quantity
    1 Palletizing Unit SET 1
      Shaping conveyor SET 1
      Manipulator with grippers application PC 1
      Layering flap PC 1
      Pallet magazine PC 1
      Pallet conveyor PC 1
      Loaded pallet conveyor PC 1
    2 Control System of Palletizing SET 1
    3 Fixture Components (anchor bolts, nuts, etc.) SET 1
    4 Control Cable (from cabinet to machine) SET 1





























    After-sales Service

    1. Operator training will be provided to the Buyer after the completion of installation and commissioning, and complete set of technical support for installation and commissioning will also be provided;

    2. Training for operators: operating process, safety issues, attentions, etc.;

    3. Training for maintenance personnel: mechanical structure, work principle, daily maintenance, trouble shooting, etc.;

    4. Machine warranty period is 12 months. In warranty period, the Seller shall take the responsibility to repair or replace defective or damaged products, in case such defect or damage is not caused by the Buyer or it is the result of Seller’s mistake. (Travel expenses are not included and shall be agreed on by both parties.) In warranty period, if any damage is caused by the Buyer’s operation or improper maintenance, the Seller shall be liable for repair or replacement. But component(s) cost and repair fees shall be borne by the Buyer.
