Non Standard Automatic Production Line , Grinding Wheel Picking and Packaging Line

Non Standard Automatic Production Line , Grinding Wheel Picking and Packaging Line

Non Standard Automatic Production Line , Grinding Wheel Picking and Packaging Line

Product Details:

Place of Origin: People's Republic of China
Brand Name: Hongsen Intelligent

Payment & Shipping Terms:

Minimum Order Quantity: 1 PC
Price: Negotiable
Payment Terms: L/C, T/T
Contact Now
Detailed Product Description
Control: PLC & HMI Automation Grade: Full-automatic
Product: Grinding Wheel, Compact Disc, Etc. Function: Picking And Packing
Design: Non-standard Machine: Parallel Robots, Belt Conveyors, Etc.

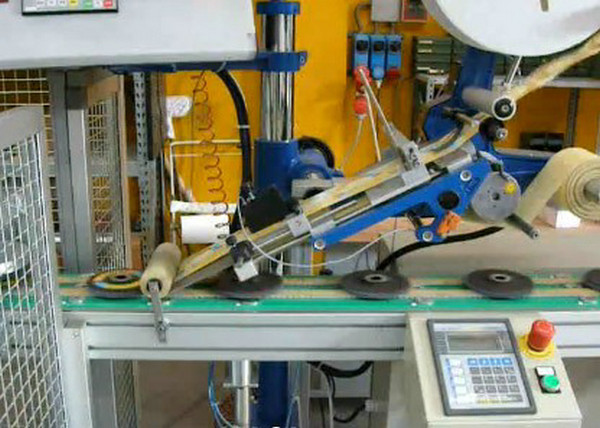

Non-standard Automation - Full-automated Grinding Wheel Picking and Packaging Line





Our grinding wheel picking and packaging line is a non-standard solution for grinding wheel manufacturers based on our automation technologies and decades of non-standard design experience.



The full-automated grinding wheel picking and packaging line is mainly composed of:



1. Packaging film uncoiling machine and conveying system;

2. Single grinding wheel dispensing and conveying system;

3. Packaging film cutting and label sticking mechanism;

4. Grinding wheel displacing and stacking station;

5. Stacking packing and discharge system.



Features:



A. Non-standard design as per customer's requirements and our professional evaluation;

B. Application of parallel robots for grinding wheel flexible picking and displacement;

C. Fully automatic operation of the complete process of grinding wheel packing, no need of human intervene;

D. Even and flat sticking of labels on grinding wheel, which makes a good appearance;

E. Flexible and soft handling of the grinding wheels to reduce damage rate;

F. Compact structure of the line with low energy consumption.



Other customized automation lines as per your requirements will be evaluated by our experienced professional technical team.
