|Place of Origin:||People's Republic of China|
|Brand Name:||Hongsen Intelligent|
|Minimum Order Quantity:||1 PC|
|Payment Terms:||L/C, T/T|
|Automatic Grade:||Full-automated||Control Mode:||PLC|
|Machine Type:||Carton Packaging Machinery||Driven Type:||Electric|
|Sealing Station:||Available||Application:||FMCG, Drink, Dairy, Etc.|
case packing equipment,
carton box packaging machine

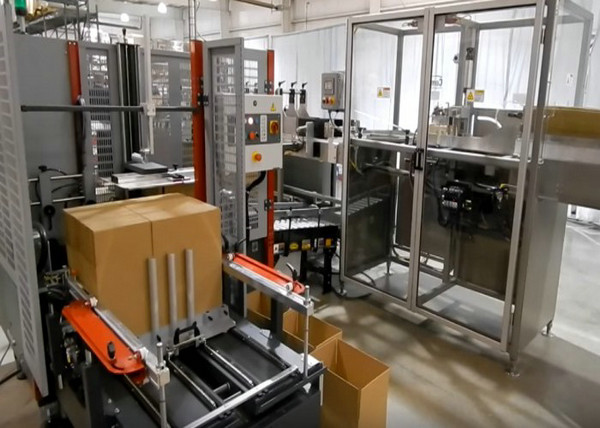

Automatic Case Packer for Bottled and Canned Beer with Carton Erector and Sealer
This fully automated carton box packing machine is able to complete all the procedures in case erecting, case packing and case sealing all at once including flat carton fetching, case forming, products filling-in and automatic sealing as well as full carton discharge. It makes the process much simpler and more continuous than manual and semi-automatic carton opening, loading and sealing. For carton sealing, hot melt adhesive tape is used to make the process healthier and the finished carton look much tidier and more beautiful.
The machine consists of electric cabinet, conveyor, sensors, flat carton magazine, carton fetching mechanism, bottle/package turning device, bottle/package pusher, buffer mechanism, lifting arm, encasing device and sealing station.
1) Bottle/package feeding: Bottles/packages are conveyed onto infeed conveyor, then through guiding plate to vibrating station to prevent blocking, after which the bottles or packages will be separated into different lanes as per customer's requirement by the separating plates.
2) Flat carton magazine: It can store approximately 200 PCS flat carton. The flat cartons will be taken one by one by a mechanical arm with vacuum sucking device an then put on the inclined conveyor to be conveyed to the filling station.
3) Bottle/package separating: Separating the bottles/packages from infeed conveyor as per customers’ requirements and then conveyed to the filling station.
4) Bottle/package pushing: The pusher gather the scheduled bottles/packages and then push them onto the ready-to-fill position.
5) Folding, gluing and shaping: Flat carton is folded, glued and pressed by mechanism on folding conveyor to shape an open carton box.
6) Filling-in and sealing: A mechanical arm or a pusher put the scheduled bottles/packages into the carton box and then conveyed out to seal and discharge.
Key Technical Data:
|Carton sizes||Customized according to samples|
|Feeding height||Based on the actual conveying height|
|Capacity||8-30 carton/min (can be customized)|
|Rated powder||6 KW|
|Power supply||380V 50/60Hz|
|Packing format||One layer or multi-layers|
This machine can be applicated in the encasing of FMCG products, beer, wine, beverage, etc.
Installation and commissioning:
We will dispatch our experienced engineers to instruct the installation and commissioning. Cost will be further agreed between us and the customer. The customer shall provide necessary site facilities and assistance for the installation and commissioning.
