Place of Origin: | People's Republic of China |
Brand Name: | Hongsen Intelligent |
Minimum Order Quantity: | 1 PC |
---|---|
Price: | Negotiable |
Payment Terms: | L/C, T/T |
Automatic Grade: | Full-automated | Control Mode: | PLC |
---|---|---|---|
Machine Type: | Carton Packaging Machinery | Driven Type: | Electric |
Rated Powder: | 6 KW | Application: | Seasoning, Chili, Spice Powders, Etc. |
Capacity: | Customized | Operation: | HMI System |
Highlight: | automatic case packer,carton box packaging machine |
Automatic Case Packer for Seasonings / Chili / Cumin / Turmeric / Spice Powders
Descriptions:

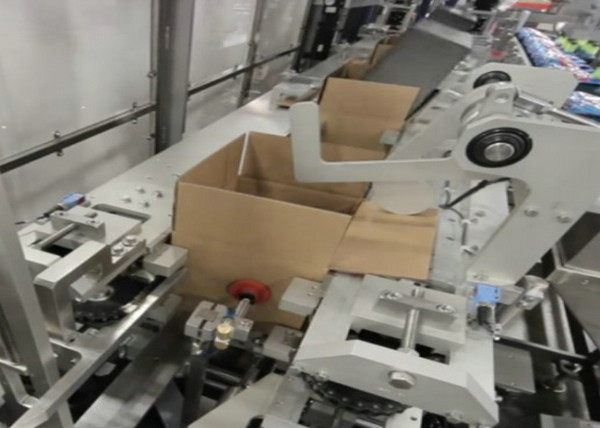

This fully automated carton box packing machine is able to complete all the procedures in case erecting, case packing and case sealing all at once including flat carton fetching, case forming, products filling-in and automatic sealing as well as full carton discharge. It makes the process much simpler and more continuous than manual and semi-automatic carton opening, loading and sealing. For carton sealing, hot melt adhesive tape is used to make the process healthier and the finished carton look much tidier and more beautiful.
The machine consists of electric cabinet, conveyor, sensors, flat carton magazine, carton fetching mechanism, bottle/package turning device, bottle/package pusher, buffer mechanism, lifting arm, encasing device and sealing station.
Key Features:
1. Use continous infeeding method to increase carton box supply speed and decrease the overall cost of the case packer machine;
2. Accurate positioning of fixtures and products to ensure 100% taking and encasing of the products;
3. Brand-name key and moving components to enable the machine stable running, easy maintenance, and long service life.
4. Adopt HMI system for easy operation, fast communication and strong diagnosis ability. High automation grade, each step is controlled by PLC system and executed accurately by field mechanisms as programmed.
Key Technical Data:
Carton sizes | Customized according to samples | ||
Feeding height | Based on the actual conveying height | ||
Capacity | 8-30 carton/min (can be customized) | ||
Rated powder | 6 KW | ||
Power supply | 380V 50/60Hz | ||
Air source | 0.6-0.8Mpa | ||
Packing format | One layer or multi-layers |
This machine can be applicated in the encasing of FMCG products, beer, wine, beverage, seasonings, chili, spice powders, etc.
Installation and commissioning:
We will dispatch our experienced engineers to instruct the installation and commissioning. Cost will be further agreed between us and the customer. The customer shall provide necessary site facilities and assistance for the installation and commissioning.
