    Product Details:

    Place of Origin: People's Republic of China
    Brand Name: Hongsen Intelligent
    Model Number: HS-MD1000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 PC
    Price: Negotiable
    Payment Terms: L/C, T/T
    Contact Now
    Detailed Product Description
    Name: Automatic Palletiser Frame Material: High Strength Carbon Steel
    Machine Dimension: L7300*W4100*H3500 Mm Palletizing Speed: 2-4 Layers Per Minute
    Palletizing Height: 200-1600 Mm Suitable For: Bags/boxes
    Pallet Size: L1000-1200* W1000-1200 Mm

    High Position Palletizer for Stacking FMCG Products Food Beverage on Pallets





    I. Working Principle

    1. Product Introduction

    High - level palletizing machine is a special high speed automatic palletizing machine. Hongsen Intelligent high level palletizing machine HS-GW-1500 could lift bag to a certain height, then transfer, marshall, layer and stow the material bag according to the predetermined way on the empty pallet with layer type, and finally output with the finished pallets.



    2. Features

    The high - level palletizing machine is to carry out each layer according to the bag counting. The material bag is changed by the transposition machine to reach the preset pallet type. The marshalling machine determines which bags are in which layer, and then the bag pusher accurately push the bag onto the pallet. After it finished the palletizing, the loading car will put the full pallet on the conveyor, waiting for the forklift to take away.



    Ⅱ Features of this palletizing system:



    1. Intelligent operation management;



    2. Reduce the number of employees and the intensity of labor;



    3. Widely used for automatic palletizing in petrochemical, food, medicine, fodder, grain, non-ferrous minerals and building materials industries.



    4.Gripper doors open simultaneously. Bags are dropped on sliding doors. Boxes and crates are lowered on sliding doors by centralisation unit


    5. Pallet is lifted up the enclosed stacking cage to be right underneath the sliding doors where individual layers are formed


    6. Once layer is complete, squeeze collar compresses it to create a tight confined layer to the pallet's dimensions


    7. Sliding doors open to place layer on the pallet

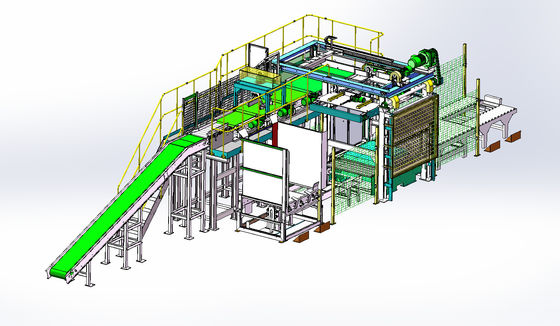

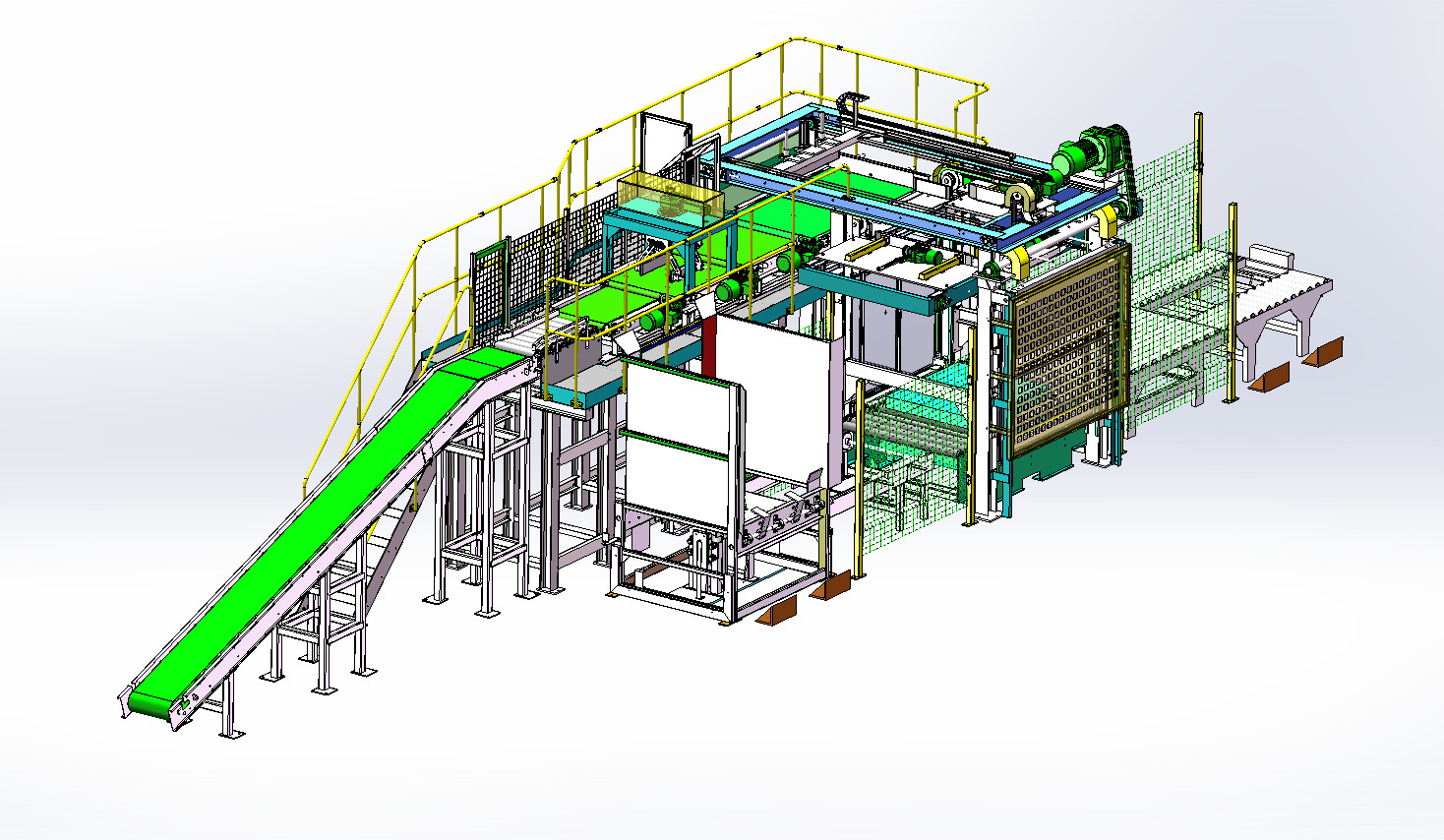

    Ⅲ. Equipment Composition:

    1. Slope Conveyor

    2. Roller Conveyor

    3. Servo Transposer

    4. The Marshalling Machine

    5. Push Bags System

    6. Layering Device

    7. Pallets Library

    8. Pallet Conveyor

    9. Block Conveyo

    Ⅳ.Technical Parameters:



    Model Material Palletizing speed Pallet size(mm) Palletizing height(mm) Power Supplier Power consumption Machine dimensions(mm)
    HS-MD1000 Carbon steel 2-4 layers/min

    L1000-1200*

    W1000-1200

    200-1600 220/380V 50HZ 6KW L7300*W4100*H3500



    High Level Palletizer with Automatic Palletizer Machine for 25kg-50kg Bag Type Products

    High Level Palletizer with Automatic Palletizer Machine for 25kg-50kg Bag Type Products




    Welcome to inquiry us for your end of line solution!!!



    High Level Palletizer with Automatic Palletizer Machine for 25kg-50kg Bag Type Products
